A serged edge seam is a professional and durable seam finish commonly used in garment construction. It not only joins fabric pieces together but also prevents fraying, making it ideal for knit and woven fabrics alike. If you're new to using a serger (also called an overlock machine) or looking to refine your technique, this guide will walk you through everything you need to know.
Get The Suplie List By Clicking Here

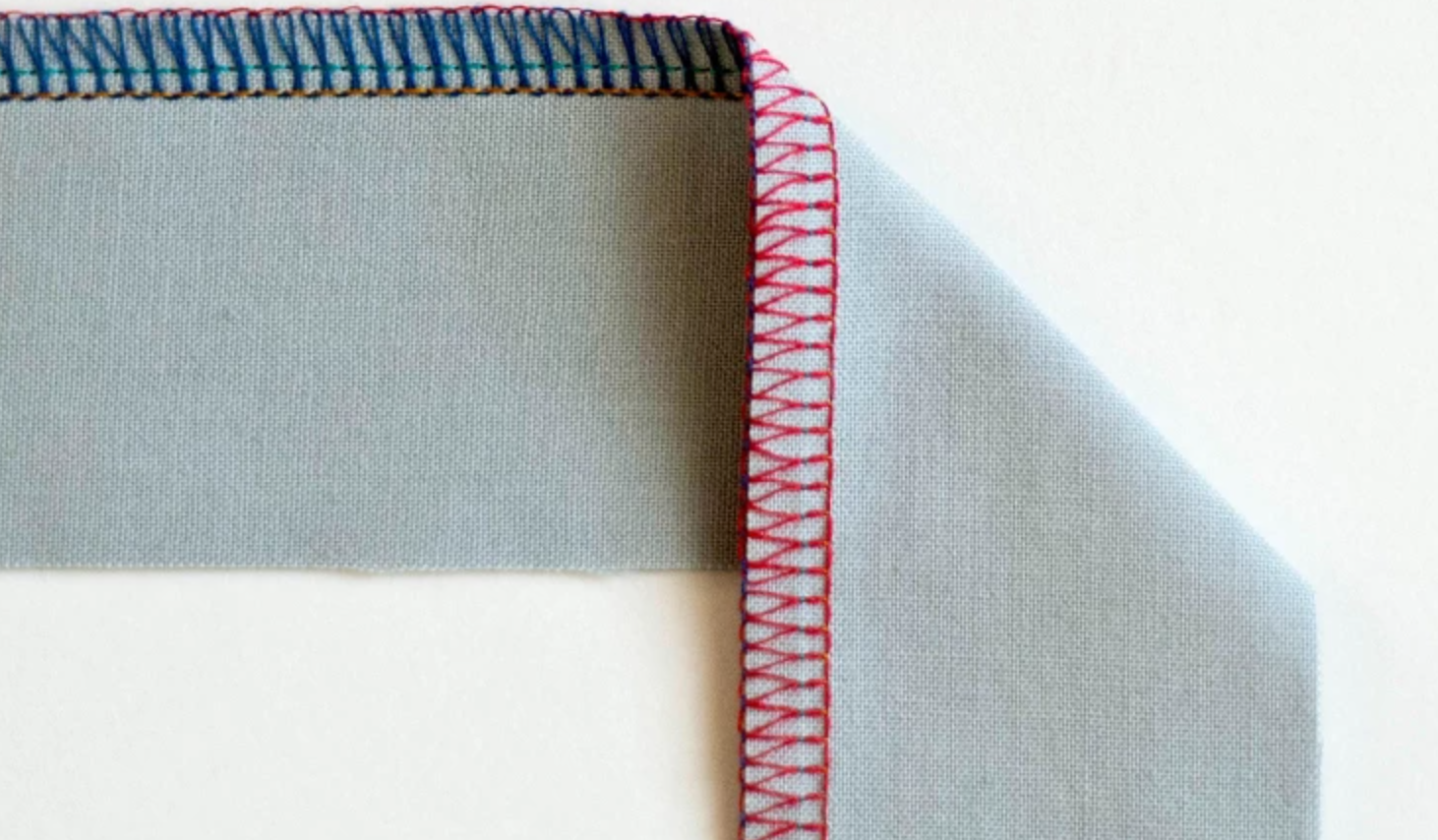

🧵 What Is a Serged Edge Seam?
A serged edge seam is created using a serger machine, which trims the fabric edge while simultaneously stitching over it with multiple threads. This forms a secure, stretchy seam (depending on the fabric and thread used) and gives a clean, finished look on the inside of garments.
---
✂️ Tools and Materials You’ll Need
1. Serger (Overlock Machine) – 3-thread or 4-thread setup.
2. Fabric – Woven or knit, depending on your project.
3. Sewing Pins or Clips – To secure fabric before serging.
4. Fabric Scissors or Rotary Cutter – For precise cutting.
5. Thread – Serger thread in matching or contrasting color.
6. Measuring Tape or Ruler – For seam allowances.
7. Marking Tool (optional) – Fabric-safe chalk or pen.
---
🔧 Threading Your Serger
Before starting, thread your serger correctly:
Follow the threading diagram on your machine (or check the manual).
Most sergers have color-coded guides.
For a basic serged edge seam, you’ll typically use a 3-thread or 4-thread overlock stitch:
3-thread: Good for finishing raw edges.
4-thread: Stronger and better for seams that will be stretched or worn.
💡 Tip: Always test your stitch on a scrap of your project fabric.
---
📐 Step-by-Step: Making a Serged Edge Seam
Step 1: Prepare the Fabric
Wash and press the fabric to preshrink and smooth out wrinkles.
Cut pieces with attention to grainline and pattern alignment.
Mark seam allowances if needed.
Step 2: Align Fabric Pieces
Place the two fabric pieces right sides together.
Align the edges to be seamed.
Pin or clip the fabric layers together away from the edge (sergers cut as they sew, so pins too close can break a blade or needle).
Step 3: Adjust Settings on Your Serger
Stitch length: 2.5–3.0 is typical for seams.
Differential feed: Adjust depending on fabric type (use higher settings for knits to avoid stretching, lower for gathers).
Knife blade: Ensure it's engaged if trimming is needed.
Step 4: Start Serging
Position the fabric edge just under the presser foot.
Gently guide the fabric while the machine trims and stitches the edge.
Do not pull or push the fabric—let the feed dogs do the work.
💡 Tip: Keep a consistent seam allowance. Most sergers have guides etched on the plate.
Step 5: Finish the Seam
At the end, serge 2–3 cm off the fabric to create a thread tail.
Tie off the thread chain or weave it back into the stitches using a tapestry needle or a latch hook.
Get The Suplie List By Clicking Here
---
📌 Common Seam Variations
Serged Seam with Reinforcement: After serging, topstitch on a sewing machine for added strength.
Flatlock Seam: Lay fabric edges side by side or overlap slightly and use a flatlock setting (usually 2- or 3-thread) for decorative, flat seams.
---
🧼 Care and Maintenance
Clean your serger regularly to remove lint.
Oil your machine as instructed in the manual.
Replace needles and blades when they dull.
---
✅ Best Practices & Tips
Always test settings on scrap fabric.
Change thread tensions if the stitch loops are uneven or threads pull too tight.
---
🧶 When to Use a Serged Edge Seam
Garments (T-shirts, dresses, pants)
Home decor (pillowcases, curtains)
Stretchy or fray-prone fabrics (knits, rayons)
Projects requiring strong, clean seams
---
A serged edge seam not only strengthens your sewing projects but also gives them that polished, store-bought look. Once you get comfortable with your serger, you'll find it hard to go back to traditional seam finishes—especially for knits and activewear.
---
Have questions about using your serger or specific fabrics? Drop them in the comments, and I’ll help you troubleshoot!
Happy stitching! 🧵✨
